POWER LIFTGATE SYSTEM FOR ANY VEHICLE
Add a Power Liftgate Kit to your system so you can experience the convenience of higher end trim packages without the higher trim level price point. The kit is Factory fitted for over 185+ vehicle models.
MVI has another amazing product, the power liftgate upgrade, that will be convenient to have in your vehicle. Imagine opening your liftgate without using your hands, wouldn’t that be convenient? Well, MVI is happy to introduce our All New Power Liftgate System which is an available upgrade to almost any vehicle model.Â
Power Liftgate kit is an upgrade that will allow you to open and close your liftgate by the use of a remote. It can also be opened by pressing a factory button from the Driver’s Seat or rear hatch trim panel. Moreover, it can be manually opened and closed and has an OPTIONAL Foot Sensor Switch! The power liftgate upgrade has added safety features as well; with a pressure safety system to avoid accidents when opening and closing when there are obstacles present. It has adjustable height, an optional alarm sound when opening and closing, and a very quiet motor that can operate in all weather conditions.Â
Adding our power liftgate kit to your system will have an OEM Fit and Finish feel, without the OEM trim level price tag. Length and height opening will varies per vehicle model, so please check the fitments below and reach out with any questions prior to ordering.Â
Power liftgate series
CONFIDENT
We strive to ensure your confidence is 100% when handling the keys back to your client. Our kits will provide the best experience possible with OEM type components and functionality
complete kit

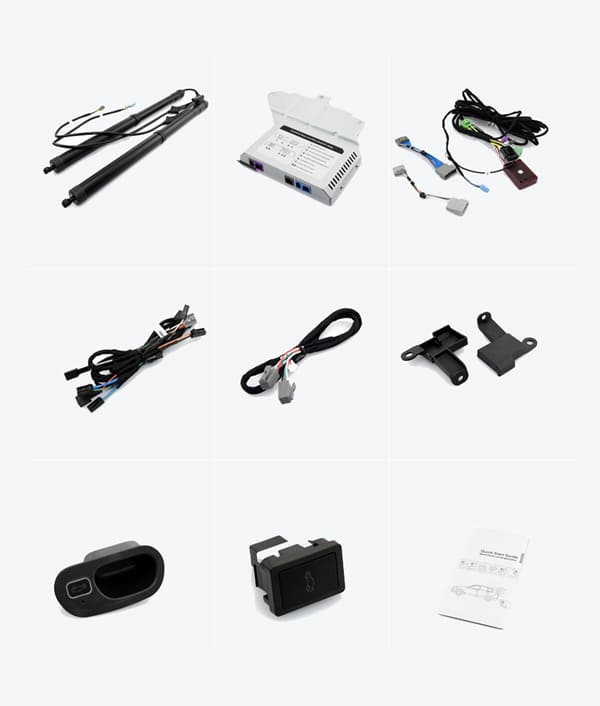

1x Power Loom, 1x Control Box, 2x Power Struts, 1x Dash Button, 1x Gate Button, 1x Lock Cable, 1x Power Latch (Depends on vehicle), 1x Foot Sensor, 1x eManual. Part list is for reference only, products are vary depending on vehicle model/year.
CONVENIENCE
Each kit has the option to add our convenience opener. This will allow the operator to easily open the rear hatch without your hands
cohesive
To create the ultimate factory experience, we provide OEM matched components. In addition, each kit uses your existing ORIGINAL KEYFOB
SYSTEM FEATURES OF POWER LIFTGATE KIT
- Adjustable Gate Height
- Pressure Safety System
- Factory / OEM Fit / Finish
- Optional – Alarm Sound when Closing and Opening
- Quiet Motor
- Work in all Weather Conditions

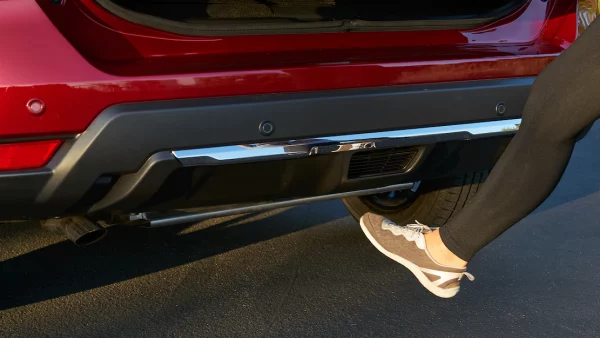

- Add-On Foot Sensor when Opening
- Retains Manual Opening and Closing
- Remote Opening and Closing
- Factory Buttons Switch (Front and Rear)
- 3 Wire Connection and the Rest is all Plug and Play
INSTALL DIFFICULTY
5 out of 10 (Since wire connections are mostly plug and play

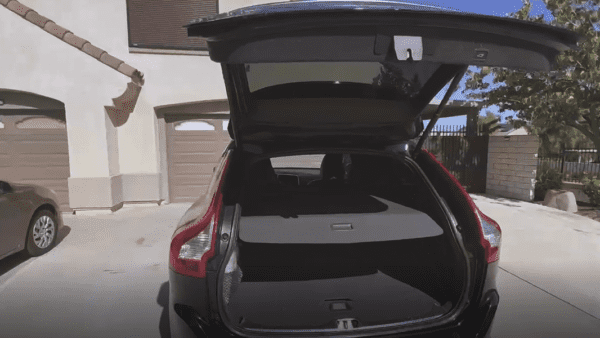

Watch Video to see how it works
Please send pictures of your Hatch / Truck when OPEN or CLOSED to ensure fitment accuracy for all models. Foot Sensor Switch is an ADD-ON so make sure you select it if you need it before checkout.

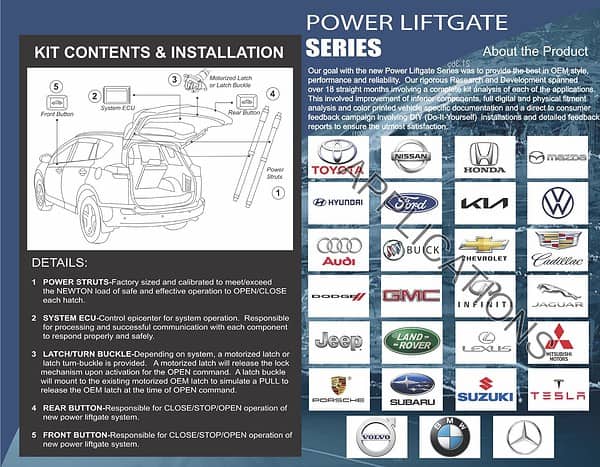

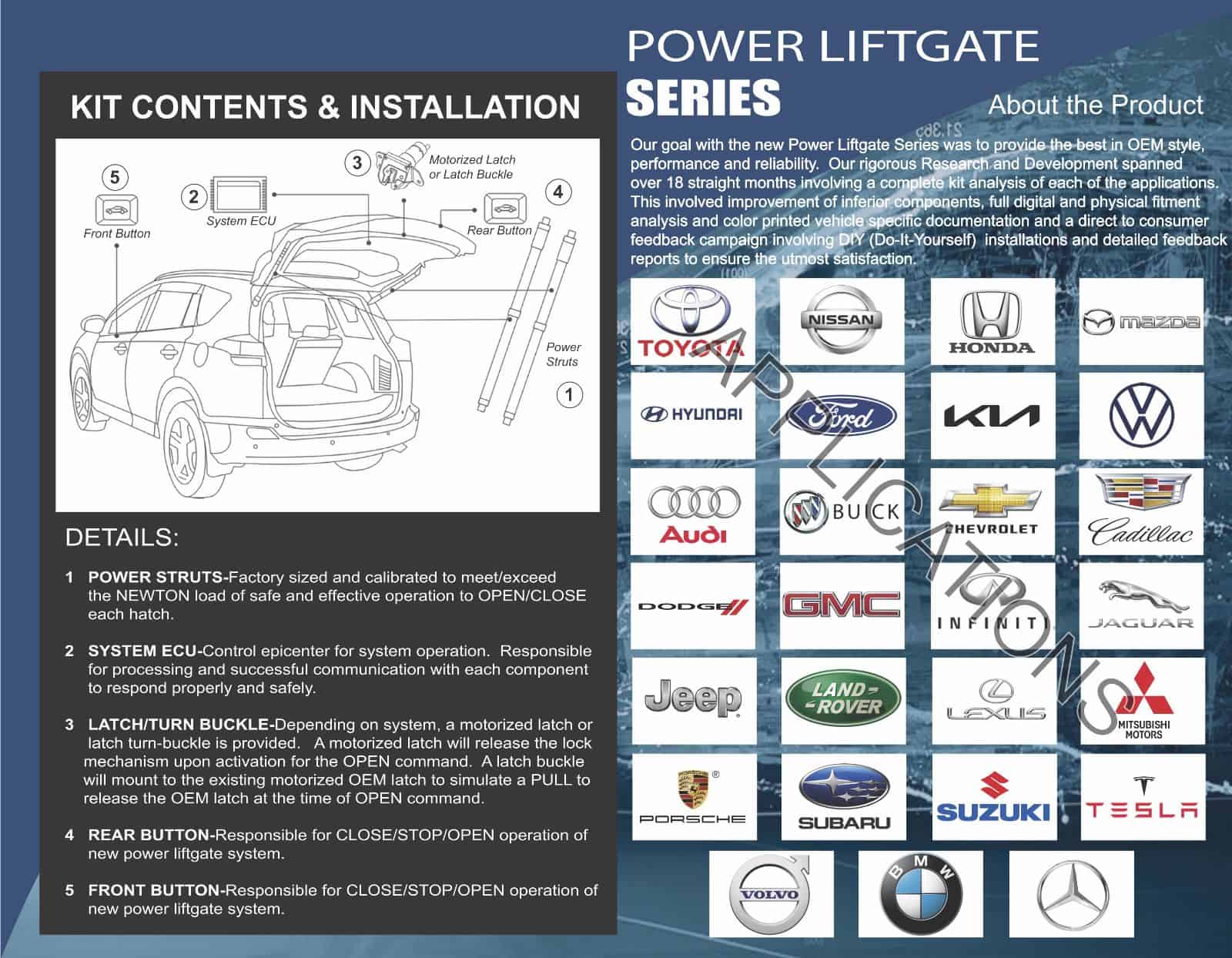

KIT CONTENT & INSTALL OVERVIEW
- Remove rear hatch panels
- Remove factory lift gate struts
- Remove factory strut mounts
- Install supplied vehicle specific strut mounts and struts.
- Install vehicle software specific control module
- Route custom harness looming to front of vehicle on drivers side
- Make connections with supplied info
- Install front open/close switch
- Install rear open/close switch
- Calibrate the system
- Test and put back together
details:
- POWER STRUTS – Factory sized and calibrated to meet/exceed the NEWTON load of safety and effective operation to OPEN/CLOSE each hatch.
- SYSTEM ECU – Control epicenter for system operation. Responsible for the processing and successful communication with each component to respond properly and safely.
- LATCH/TURN BUCKLE – Depending on the system, a motorized latch or latch turn-buckle is provided. A motorized latch will release the lock mechanism upon activation for the OPEN command. A latch buckle will mount to the existing motorized OEM latch to simulate a PULL to release the OEM latch at the time of OPEN command.
- REAR BUTTON – Responsible for CLOSE/STOP/OPEN operation of new power liftgate system.
- FRONT BUTTON – Responsible for the CLOSE/STOP/OPEN operation of new power liftgate system.
