Video and Navigation Portal for Carplay and Android Auto

$449.00 $399.00

Apple Carplay and Android Auto Video and Navigation Portal

PLEASE READ THE DESCRIPTION AND CHECKBOXES PRIOR TO CHECKING OUT, SO YOU ARE FULLY AWARE OF WHAT YOU ARE BUYING

Version 2.5 Operation

Version 3.0 Operation

Availability: 4 in stock

Please provide Vehicle Year/Make/Model

Please provide last 8 of vehicle vin#

Please select Portal Version # needed

Please select if you would like to Hard Install Version 3.0 into your vehicle

SKU: Video-CP-PRTL Categories: , , ,

MVI is super happy to bring you the industry’s first Apple Carplay and Android Auto Video and Navigation Portal. This all new piece of awesome technology opens up a whole world of video entertainment and navigation options; in your vehicle and at your finger tips! We will have several vehicle applications available, so please make sure to read the fitments and requirements below.

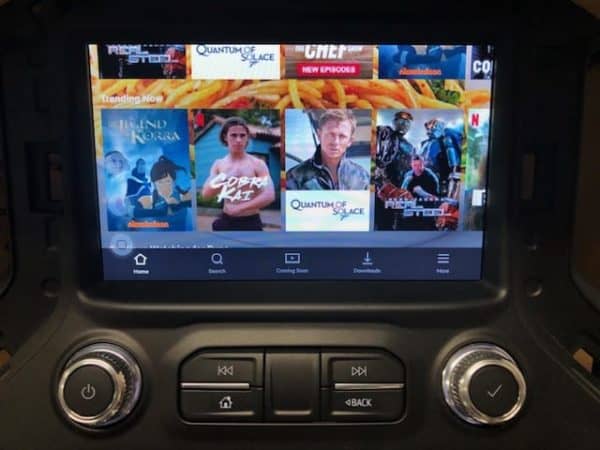

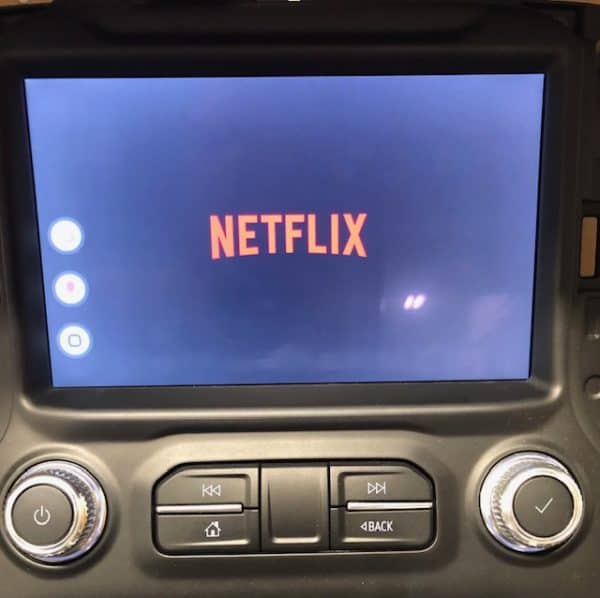

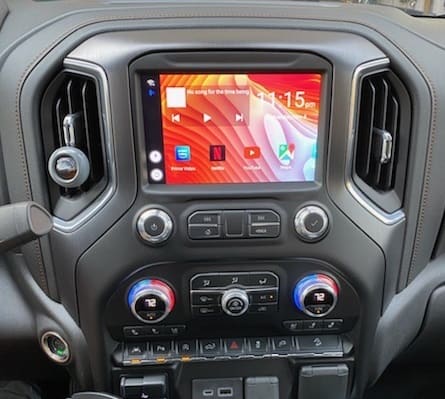

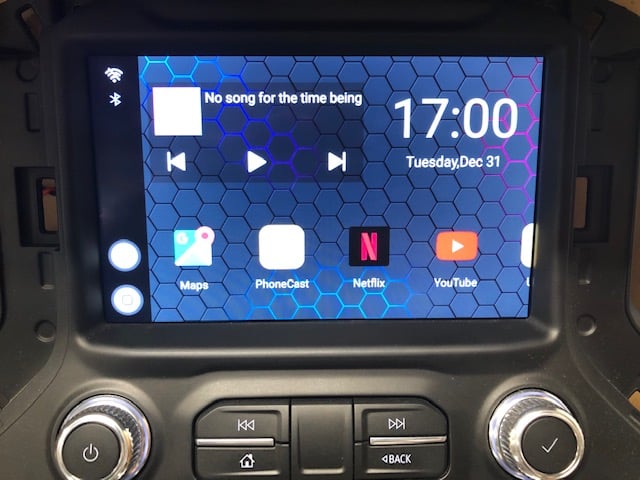

This all new Apple Carplay and Android Auto Video and navigation Portal will be available in two different versions. Both versions will be offered for full On-Screen Touch Control, and both versions will have the Video Streaming Capability (WIFI Required) and On Board Navigation Software. This device currently runs on the Apple Carplay Factory Interface, so Apple Carplay and Android Auto functionality is a requirement. Because this is a stand alone device, your particular phone does not play a role in functionality or requirements.  Both portal options will have the ability to load content directly onto the device, or allow Video playback via a USB Flashdrive, without the need of WIFI. In addition, both portal options will allow for offline, on-screen navigation mapping with the use of the included GPS Antenna. Please read closely the differences between the two device options below, before making your selection to checkout.

Our Carplay and Android Auto Video and Navigation Portal 2.5 version will be our entry level portal; and will be the more economic of the two options. The small, compact and elegant design of the 2.5 version portal is a completely plug and play install; plugging directly into your factory Carplay and Android Auto Factory USB port.  This compact design also makes it easily transferable between compatible vehicles. This will give you ability to stream your favorite video apps (WIFI required to stream) or play video content from a USB flash drive; as well as use your favorite Navigation App in all your compatible vehicles.

Our Carplay and Android Auto Video and Navigation Portal 3.0 version will be our premium version portal, and will have the ability of adding additional accessories to the system as they become available. The 3.0 version portal is double the size of the 2.5 entry level version; and although it’s not required, it is designed to be more of a “Hard Install” into the vehicle; for a more permanent in-vehicle entertainment solution. The 3.0 version portal does require additional power to operate and comes standard with a 12v adapter plug that inserts into the vehicles 12v cigar port. It also comes standard with a 3ft USB cable that plugs into the Factory Carplay and Android Auto USB Port; making it a portable solution if a hard install is not ideal. Portal 3.0 will come standard with an integrated GPS antenna port; allowing the use of an optional Genuine GM GPS Antenna to be used underneath the dash pad, for complete factory integration. This feature alone, makes this version portal the perfect solution for adding On-Board, No WIFI needed, On-Screen GPS Mapping without relying on your cell phone data coverage in the area you are traveling in. Making this the perfect navigation solution for all IOA, IOB, IOR, IOS, IOT and IOU GM Infotainment 3 Vehicles!

Carplay and Android Auto Video and Navigation Portal 2.5 Features :

  • Portable Simple Plug-In Install
  • Quad-Core ARM Cortex – A53 with 2GB Ram and 16GB ROM
  • Single USB 2.0 Female for Audio/Video Playback and Regular Charging
  • Stand Alone External GPS Antenna for Off-Line mapping
  • Bluetooth 4.0

Carplay and Android Auto Video and Navigation Portal 3.0 Features :

  • Portable Plug-In Install Standard with Optional Hard Install Kit Sold Separately.
  • Dual Core ARM Cortex- A72 and Quad-Core ARM Cortex- A53  with 4GB Ram and 32GB ROM
  • 2 USB 2.0 Data Ports for Audio/Video Multi-Media Playback and 1 Fast Charging USB Female
  • Integrated GPS Antenna Port for use of Factory GPS Antenna
  • Bluetooth 5.0
  • Supports Navigation Sound with listening to OEM Radio and Media Entertainment
  • HDMI Output for added Rear Seat Entertainment Functionality!

Hard Install Options:

Option 1: Comes with a plug and play “T” harness for power/ground behind the dash panel and a flush mount USB port, to allow for USB Video Playback with the module tucked away out of site. This option will require a USB cable lead to come up from behind the dash panel for access to plug into the factory CarPlay / Android Auto USB port, to use the portal.

****Option 2 Install Kit is on Back Order until we get some new parts in to verify…Please TEXT in for more info. You can Purchase Option 1 and add the additional parts when they become available, or if you purchase Option 2, we will send the kit as Option 1 and send the rest of the parts as soon as they are ready****

Option 2: Comes with a plug and play “T” harness for power/ground behind the dash panel, USB Switcher device and additional cables / ports to keep the install completely hidden with no exposed USB leads like option 1. This option will turn one of the factory USB Hubs into a charging and video playback via USB only port. This option currently comes with a sleek system reset push button, that will be exposed somewhere for easy access if needed (please message MVI for more details on this if needed). This option is currently Not Compatible with IOA, IOB and IOR Infotainment Systems.

General Motors Vehicle Fitments:

2013 – 2016 Buick, Cadillac, Chevrolet and GMC Vehicles Retro-Fitted with the Carplay / Android Upgrade (Currently ONLY Supports Version 2.5)

2016 – 2020 Cadillac Escalade (Currently ONLY Supports Version 2.5)

2021 Cadillac Escalade (Coming Soon)

2016 – 2018 Chevrolet Camaro (Currently ONLY Supports Version 2.5)

2019 – 2020 Chevrolet Camaro (Supports Both 2.5 and 3.0)

2016 – 2018 Chevrolet Colorado / Silverado (2019 Classic Silverado) (Currently ONLY Supports Version 2.5)

2019 – 2020 Chevrolet Colorado / Silverado (2021 to be announced) (Supports Both 2.5 and 3.0)

2015 – 2020 Chevrolet Tahoe / Suburban (Currently ONLY Supports Version 2.5)

2021 Chevrolet Tahoe / Suburban (Coming Soon)

2016 – 2018 GMC Canyon / Sierra (2019 Classic Sierra) (Currently ONLY Supports Version 2.5)

2019 – 2020 GMC Canyon / Sierra (2021 to be announced) (Supports Both 2.5 and 3.0)

2015 – 2020 GMC Yukon / Denali (Currently ONLY Supports Version 2.5)

2021 GMC Yukon / Denali (Coming Soon)

Many More Applications are Possible (we will continue to update): Please Contact MVI for your exact vehicle needs

Verified Functionality on 2019 – 2020 Jeep Grand Cherokee and 2020 Ford F-250 with Version 3.0!

For more information on any of our products:

Please Call 866-428-3585 / TEXT 919-995-9523 or make a product inquiry.

Business Hours: Monday - Friday: 9am - 4pm (MST).

Weight 4 lbs
Dimensions 8 × 8 × 8 in
