GM HMI Backup Camera Programmer


Program your GM Vehicle For Backup Camera

2014 – 2019 Chevy Silverado and GMC Sierra HMI Equipped Vehicles and more…see Fitments Below

Compatibility and Programming

Please Supply Last 8 of Vin#

Year / Make / Model

Tech Support Information

Please Verify Shipping

GM HMI Backup Camera Programmer

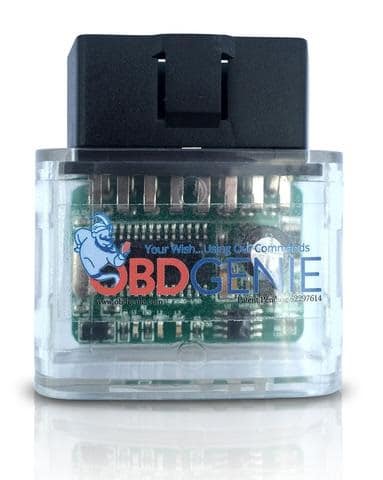

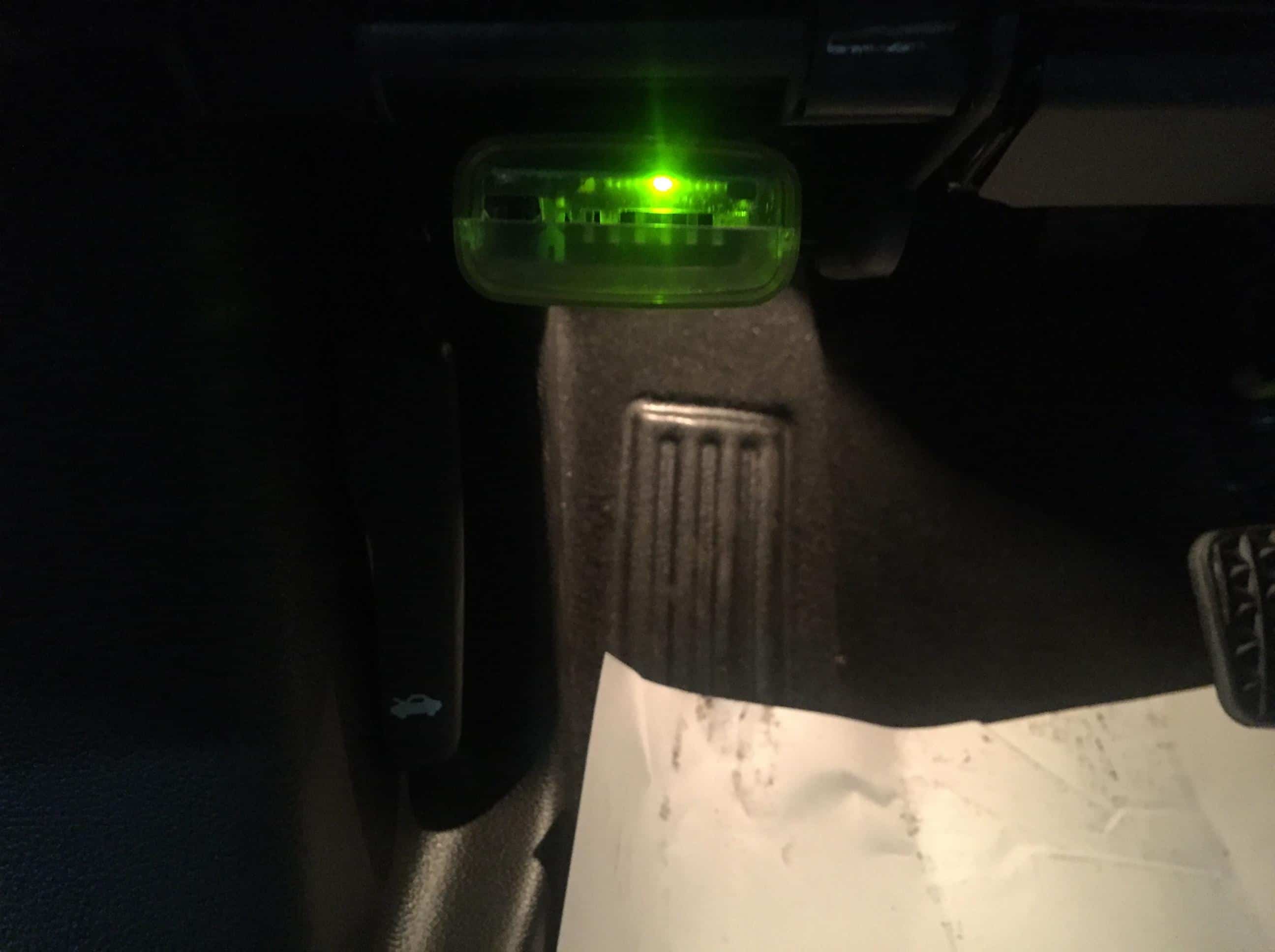

MVI Inc would like to introduce our All New GM HMI Backup Camera Programmer for 2014 – 2019 Chevy Silverado and GMC Sierra equipped with the HMI (Human Machine Interface) module. This will also work for other HMI equipped vehicles such as 2013 – 2016 Cadillac CUE Models, so make sure to read the fitments below to see if your vehicle fits. Also known as the GM Camera Genie, this little programmer will allow you to add a rear backup camera to your vehicle and will provide the required programming to the HMI module, without having to go to the dealer. Simply plug this little guy into your vehicles OBD2 diagnostic port and wait for the programmer lights to turn green! That’s all there is to it! You can now add any camera of your choice.

Once the GM HMI Backup Camera Programmer is plugged into your vehicle, the Vin is then burned into it; it is then good for the life of the vehicle. Now, thanks to the GM Camera Genie; you can take your vehicle into the dealer and let them perform any kind of programming without the hassle of worrying about overriding your new upgrade that you just invested money in.

Need to add a Tailgate Handle Camera?

Those can be found here: Silverado and Sierra Factory Tailgate Handle Camera

Already have a Tailgate Handle Camera and need to know if you are Pre-Wired for Camera Install?

2014 – 2015 Silverado and Sierra: Camera Pre-Wire Check

2016 – 2019 Silverado and Sierra: Camera Pre-Wire Check

You will also need to verify the 2 camera wires are also in slots 5 and 6 of the HMI J2 Grey 12pin Molex Connector.

I04-I05-I06 HMI J2 Pre-Wire
2014 – 2019 GM I04-I05-I06 HMI J2 Camera Pre-Wire Inspection

MVI can also provide the required harnessing for trucks that are not pre-wired for camera. Please message us for more details if you require one of these harnesses.


IMPORTANT NOTE:  Does not work on I0A, I0B or I03 Systems. If you are unsure of what system you have please message us before placing your order


2014-2016 Buick Lacrosse and Regal


2013-2016 Cadillac ATS, SRX and XTS

2014-2016 Cadillac CTS

2016 Cadillac CT6

2017 Cadillac XT5


2014 – 2017 Chevy Impala

2014 – 2019 Chevy Silverado (HMI Equipped)


2014 – 2019 GMC Sierra (HMI Equipped)

For more information on any of our products:

Please Call 866-428-3585 or make a product inquiry.

For Quickest Reply's - Use the Web Chat feature located at the bottom right corner of every page.

Business Hours: Monday - Friday: 9am - 4pm (MST).

Weight 3 lbs
Dimensions 6 × 6 × 6 in
