2014 – 2018 GM 360 Surround & Blind Spot Camera System with HDMI and USB Video

$625.00 $550.00

This is our 360 Camera System WITH Mobile Video Functionality. If you are wanting a Multi-Camera Only System WITHOUT Mobile Video Functionality…See Our GM Multi-Camera Towing Module Here

360 Surround View Camera System WITH HDMI / USB / Composite AV Functionality

Please carefully read all the check boxes and select the proper drop down menu options for order accuracy.

Availability: 30 in stock (can be backordered)

Please Select Vehicle *

2017 and Beyond Vehicles WITH Rear Seat Entertainment System please see “Requirements” below for more info about custom wiring involved.

Year / Make / Model Of Vehicle

Camera Options *

Please select the desired camera options you would like to add to your system. PLEASE NOTE: the 3rd Brake Light and Wireless Camera Options INCLUDE the video switcher for switching between the factory tailgate handle camera and the additionally added rear camera.

Audio/Video Input and Screen Mirroring Options *

HDMI/USB video input capability for Smartphone Screen Mirroring and more! Android customers, please note your phone most have screen mirroring functionality. Please read the complete product description below for more info.

Optional Factory Rear Camera In-Motion *

Plug&Play for TRUCK models only. SUV’s: please see details below for more info about extra wiring involved.

VIN Compatibility Verification

Please Verify Below *

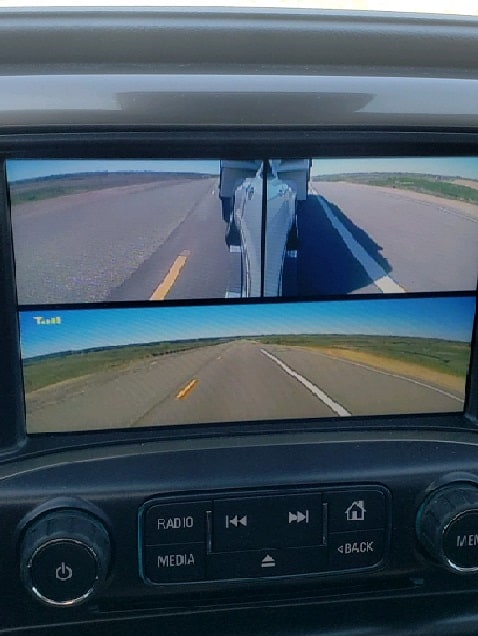

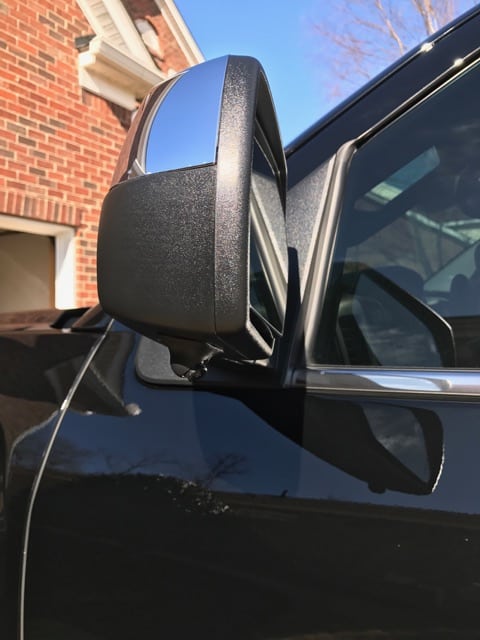

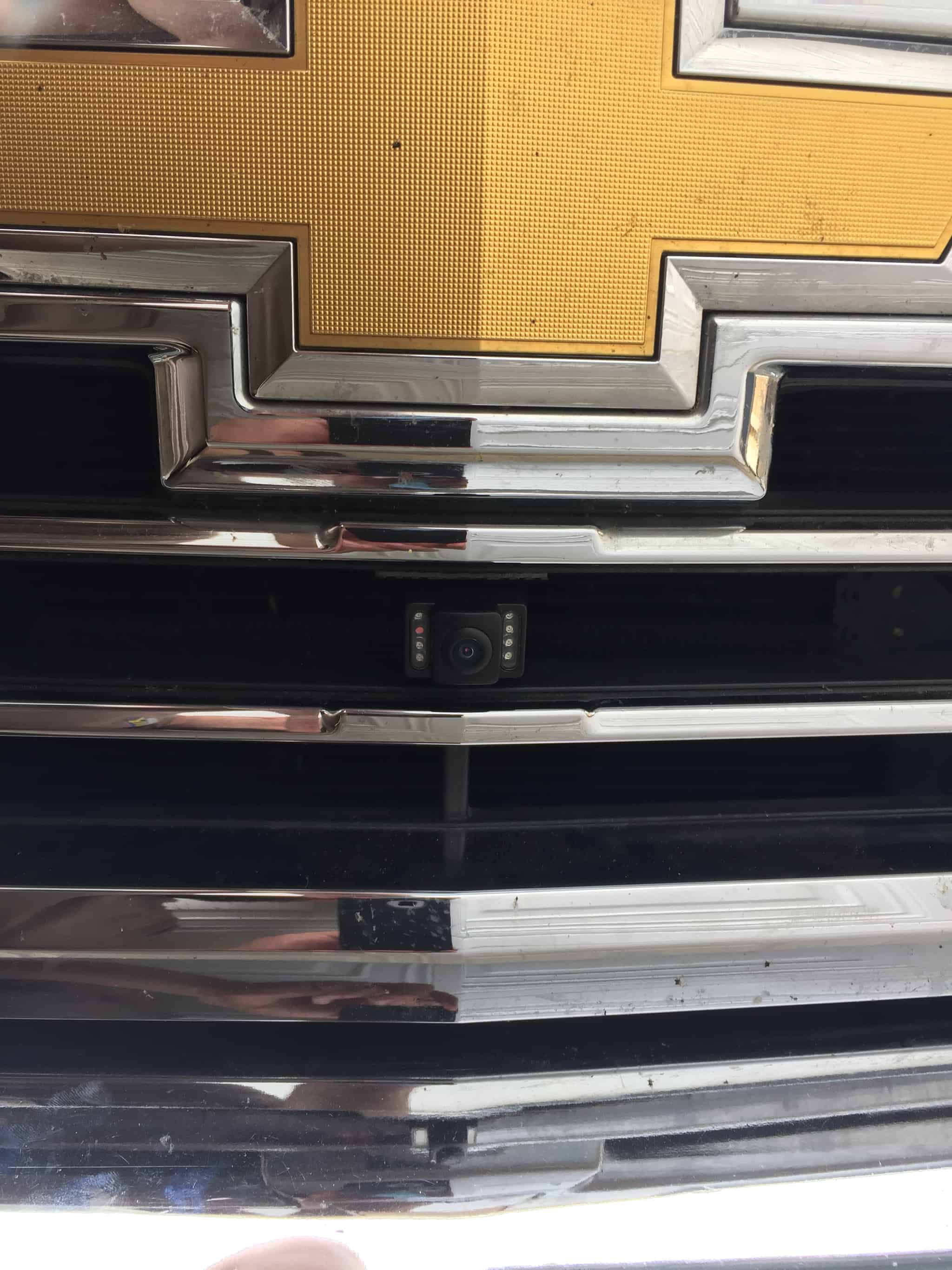

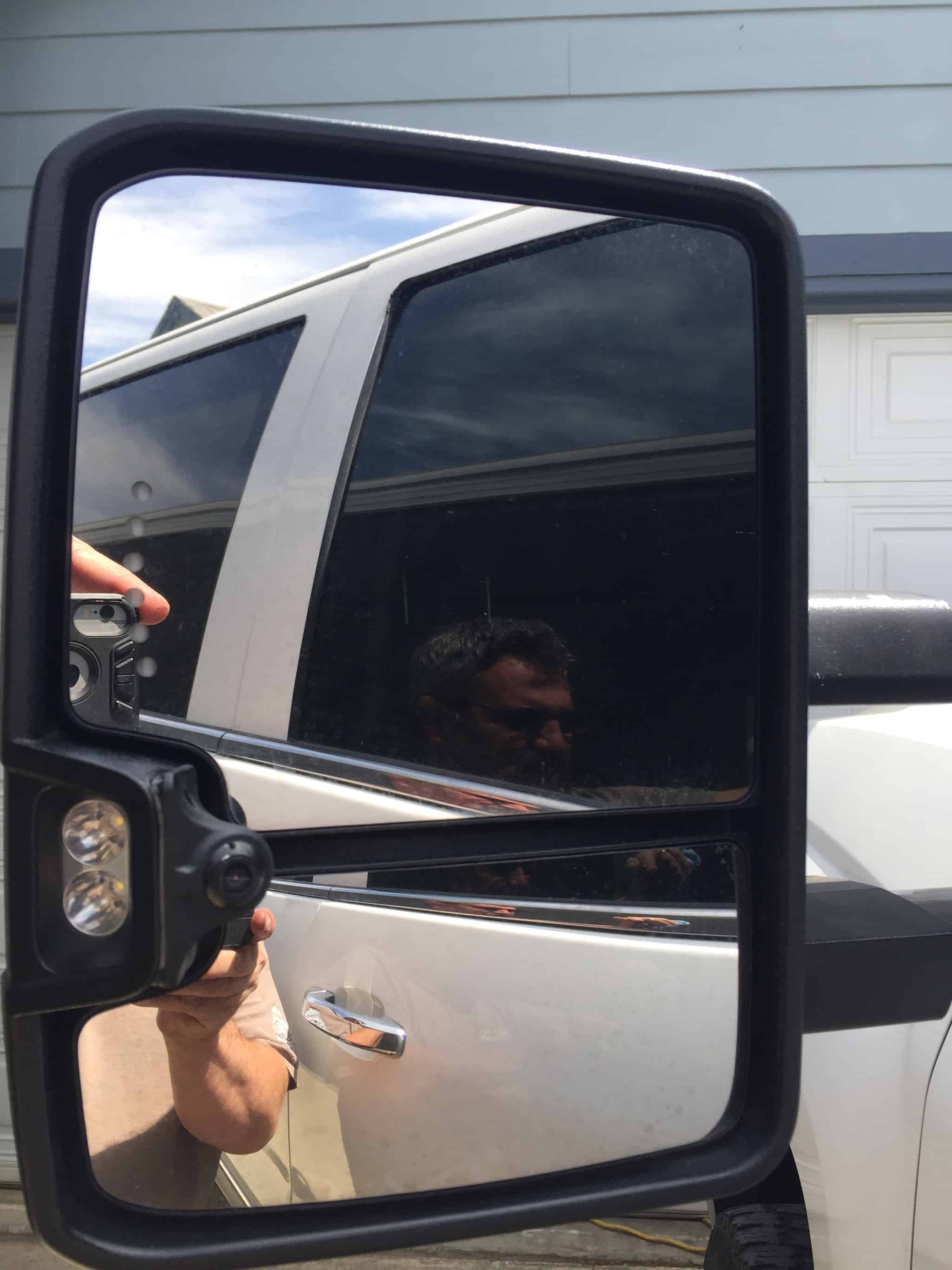

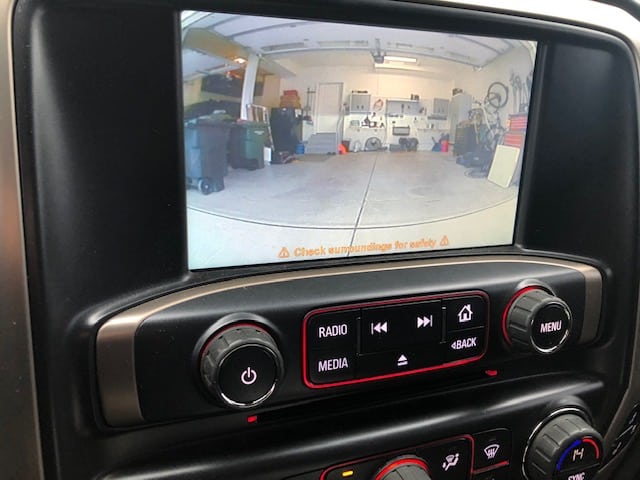

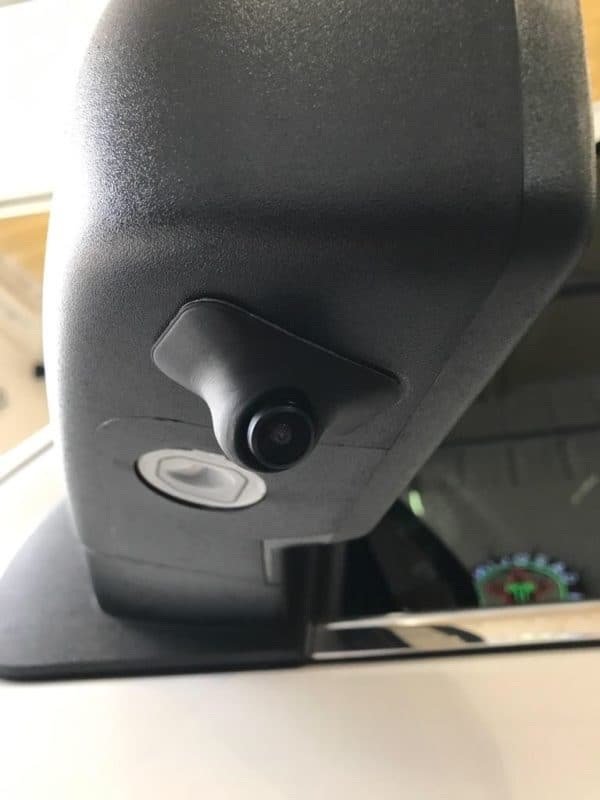

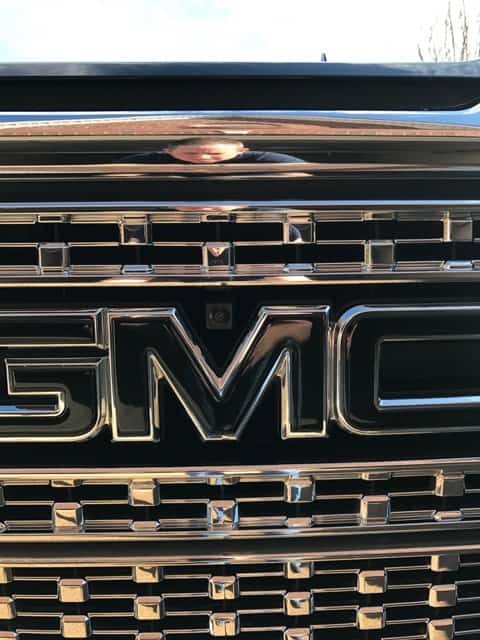

MVI Inc is proud to bring you the very latest in 360 camera and Blind Spot camera technology for your 2014 – 2018 GM vehicle with 8″ MyLink and Intellilink system. This system is completely plug and play and will add an HDMI input as well as USB Video Playback for passenger video enjoyment, including smartphone on-screen mapping / phone mirroring with the optional smartphone mirroring kit. Our 360 Surround Camera Module accepts 4 camera inputs  (front, right, left, rear / cargo / wireless camera with our 3 way video switcher); and provides automatic switching for left and right turn signals, virtually eliminating blind spots when changing lanes on the roadways (especially when pulling a trailer). It will also provide an optional automatic front camera turn on, which provides tremendous value when trying to park in a crowded parking lot or a tight spaced garage. Cameras can be pulled up and viewed directly on the Factory 8″ screen at any time; on demand while moving down the road.

We offer this 360 Surround / Blind Spot Camera System with the ability to bring your own cameras or you can add our camera packages that suit your particular needs. So; whether you need a Front Camera system for parking that lifted truck, or need a full 360 Surround for pulling and hooking up that trailer….we have you covered.

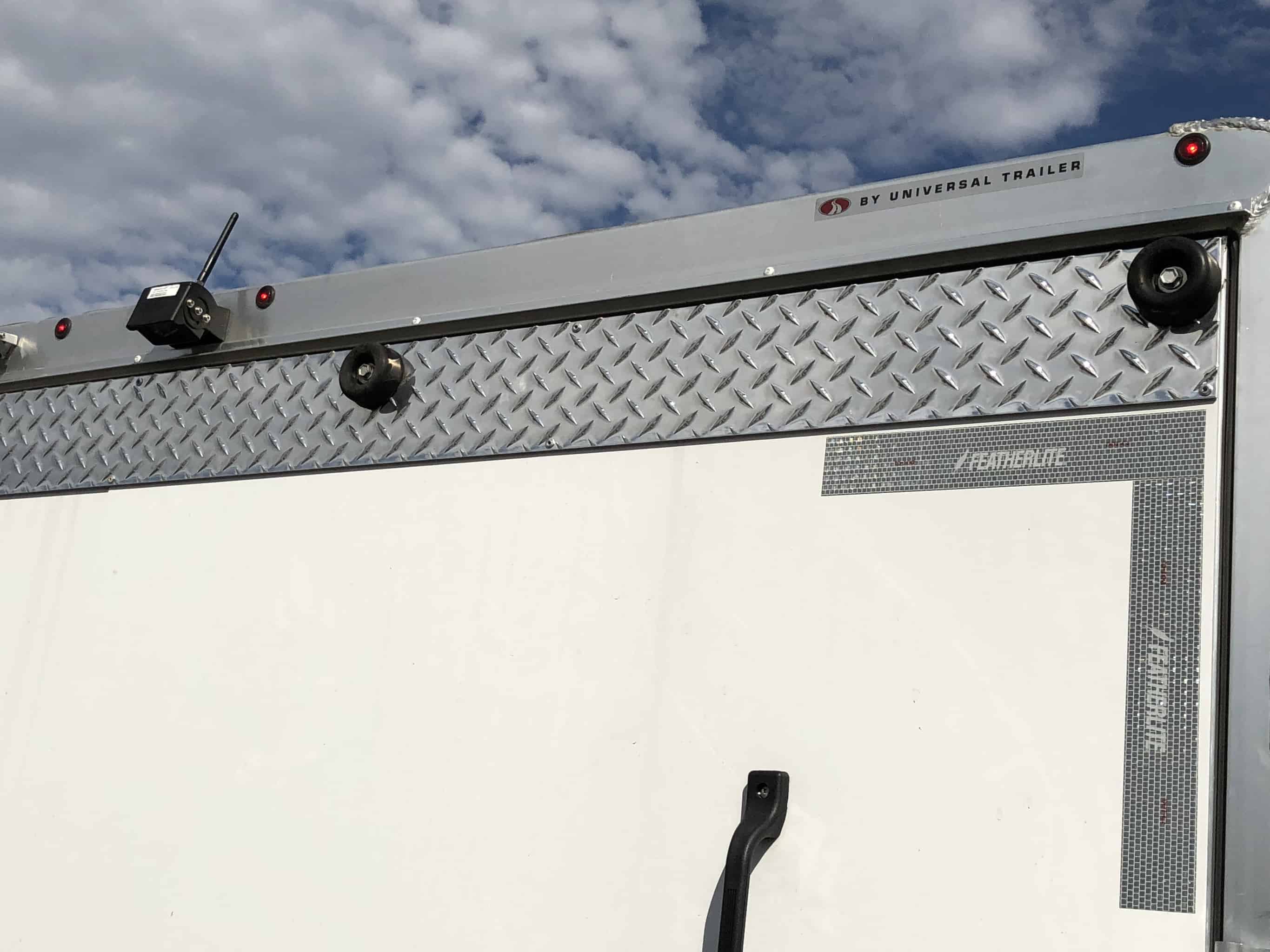

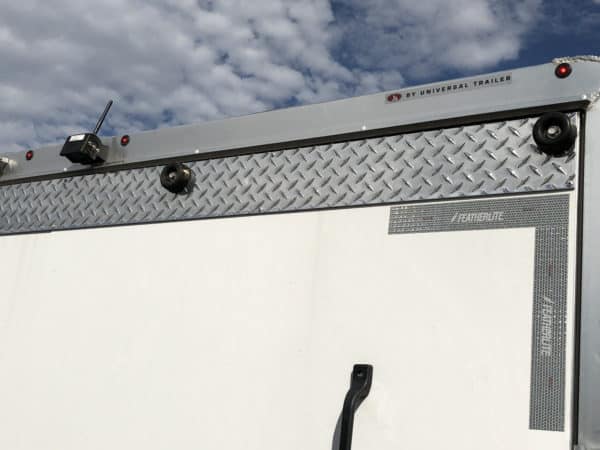

Now also available with optional: Custom GM 3rd Brake Light Cargo Camera & Wireless Camera

All of our systems come complete with everything you’ll need for your installation; including all harnessing, a BASIC set of instructions, installation videos (if available), and up to 15 minutes of technical support (more info below)



Optional Factory Rear Camera In-Motion Harness:

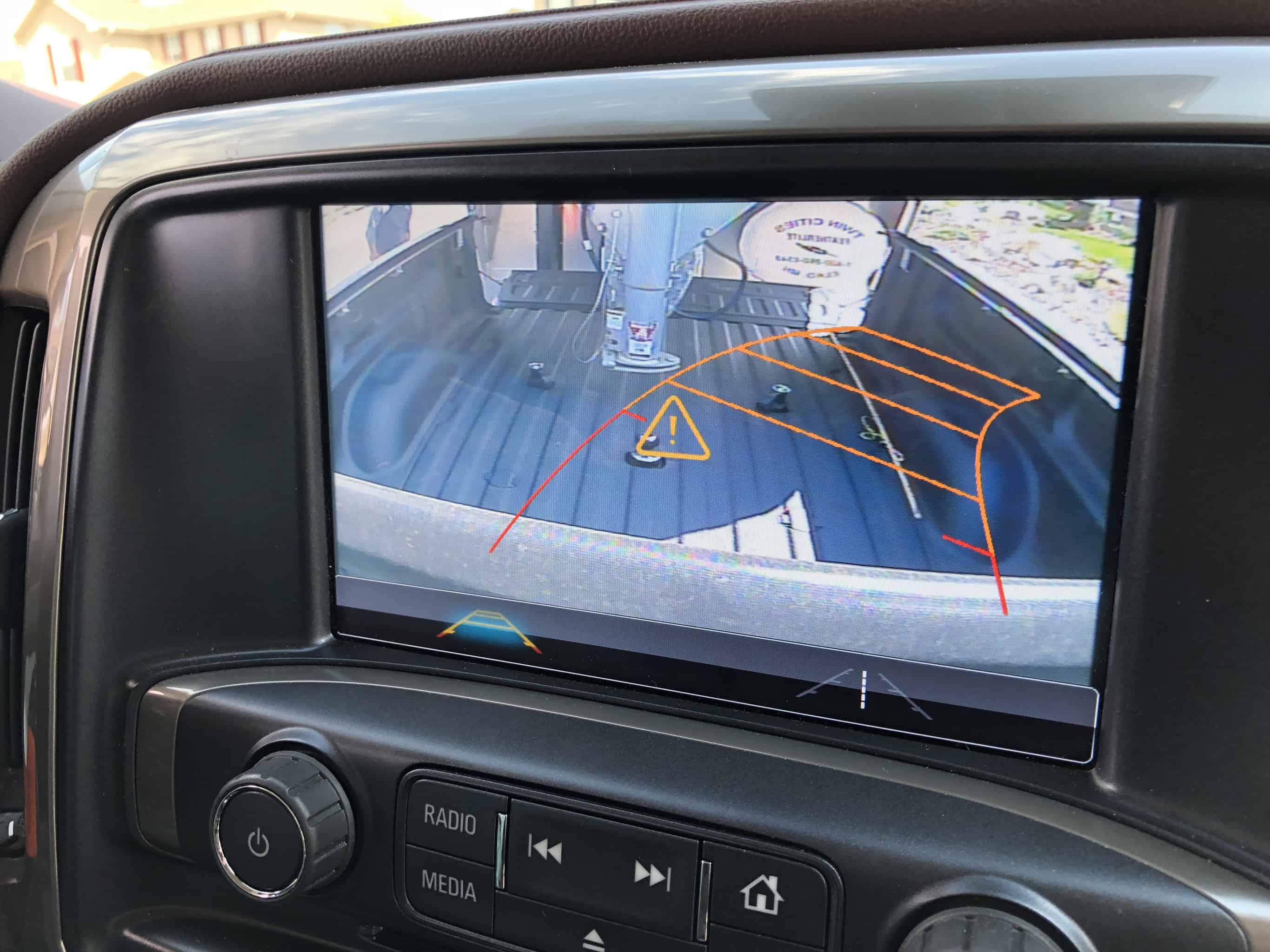

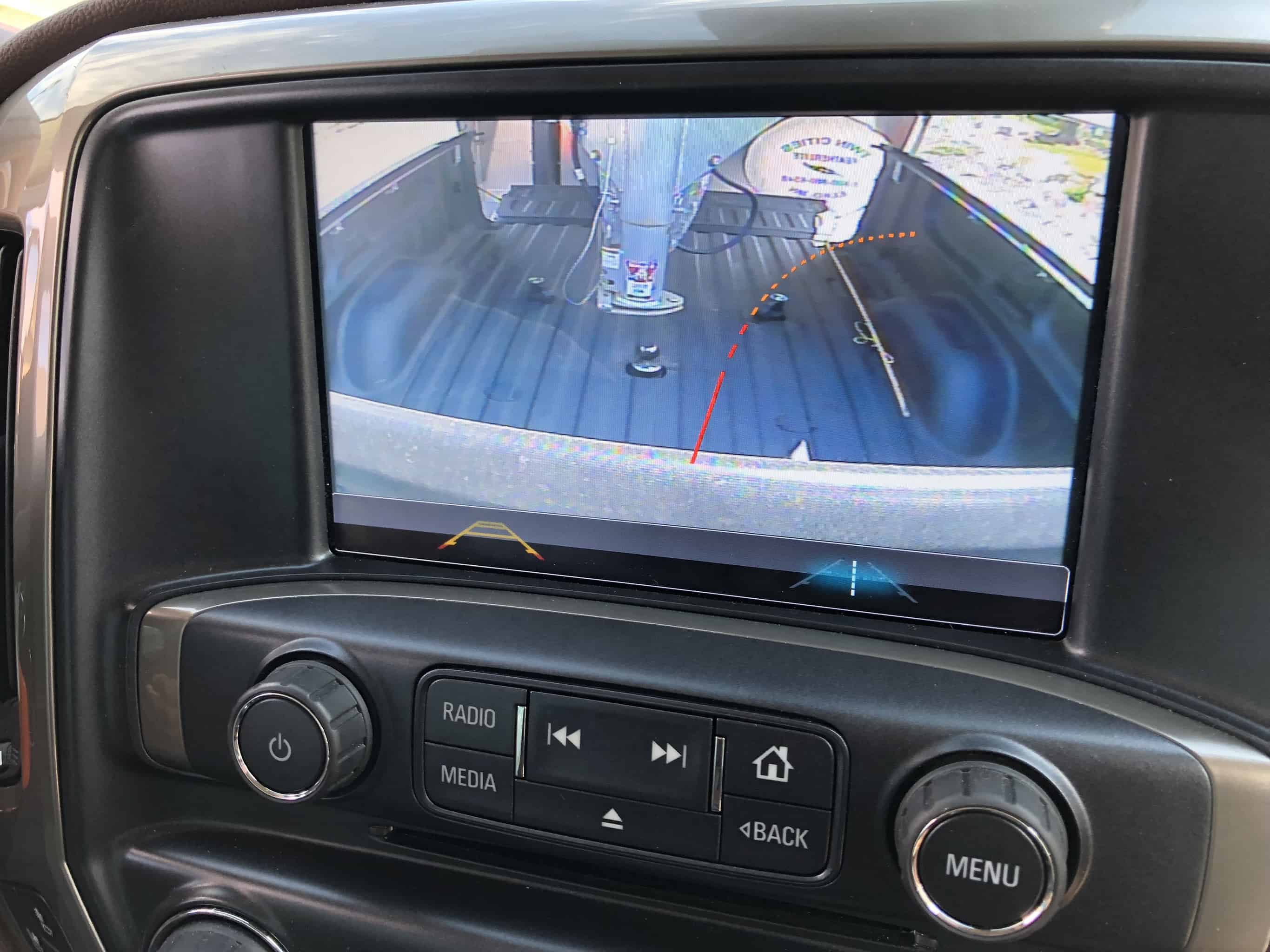

We now have the ability to input your factory tailgate camera for in-motion factory rear view camera viewing, right through your 360 interface. Extra Plug&Play harness (truck’s) or partial harness and hardwiring (SUV’s) required for rear camera in motion viewing. This feature comes in extremely handy when trying to park in tight spaces or for viewing your back up camera as a “rear view mirror” camera while driving.



Optional Smartphone Mirroring:

We now have the option to add phone mirroring capabilities to the system from the drop down selections above. Add the ability to mirror your smartphone to the screens of the vehicle with our smart phone mirroring adapter kit.

Android customers please note: Your phone must have wireless screen mirroring capability i.e Mirracast / Smart View /ETC.  If your phone does not have wireless screen mirroring capability a separate USB/HDMI adapter plug will be required to mirror the phone.



If your vehicle is not previously equipped with a reverse camera please check out our OEM GM Factory Tailgate Handle BackUp Camera for your Sierra or Silverado Truck  available to add to your kit.



Requirements:

Note: 2017 and beyond models with the Rear Seat Entertainment (RSE) System will lose the factory reverse grid lines after installation.  We do have a work around, but the wiring must be done directly on the vehicle, and it is a delicate process that should be handled  by a professional. Please text 919-995-9523 for more info on how to retain the grid lines for 2017+ RSE vehicles.

-Note: 2017 and beyond models with the Rear Seat Entertainment (RSE) System have an extra camera module that causes interference when switching between the factory tailgate camera and the optional Cargo or Wireless Camera while in reverse.  This will ONLY Affect 2017+ vehicles WITH the added Cargo or Wireless Cam option and RSE.  Please feel free to contact us for more detailed info on a hardwire work around.

-Factory Rear Camera In-Motion will require our plug and play harness (additional cost) to view your tailgate camera as a “rear view mirror” while driving down the road.  See above for details.

-Selecting a Smartphone Mirroring Kit (additional cost) will allow you to view/mirror your Smartphone to the screen of the vehicle through the Surround View interface.

-360 Camera Module itself is completely plug and play. Camera installations are very advanced and professional installation is highly recommended as there is a lot of labor involved in mounting and running the camera wires.

-8″ MyLink or Intellilink Touch Screen Required (option code IO5 or IO6 on glove box sticker).

-Professional installation is recommended if you are not familiar with automotive electronics and installations. We do provide up to 15 minutes of BASIC installation support for customers that prefer to do the install on their own, for trouble shooting purposes ONLY. As a custom business we are NOT able offer on-demand tech support. Tech support must be scheduled via TEXT MESSAGE only @ (919) 995-9526. For more info please view our Terms and Conditions.



Fitments:

  • 2014 – 2018 Chevrolet, Impala and Silverado
  • 2015 – 2018 Chevrolet Suburban and Tahoe
  • 2016 – 2018 Chevrolet Colorado
  • 2014 – 2018 GMC Sierra
  • 2015 – 2018 GMC Yukon/Denali
  • 2016 – 2018 GMC Canyon
  • 2015 – 2018 Cadillac Escalade (Not Compatible with HDMI/USB Video Module)
  • 2013 – 2017 Cadillac ATS, XTS and SRX (Not Compatible with HDMI/USB Video Module)
  • 2014 – 2017 Cadillac CTS (Not Compatible with HDMI/USB Video Module)



For more information please call 866-428-3585, TEXT 919-995-9523, or email us at support@gm-navigation.com.

Business Hours:  Mon – Fri 9AM-5PM MST



Weight 6 lbs
Dimensions 20 × 12 × 12 in

Additional Videos

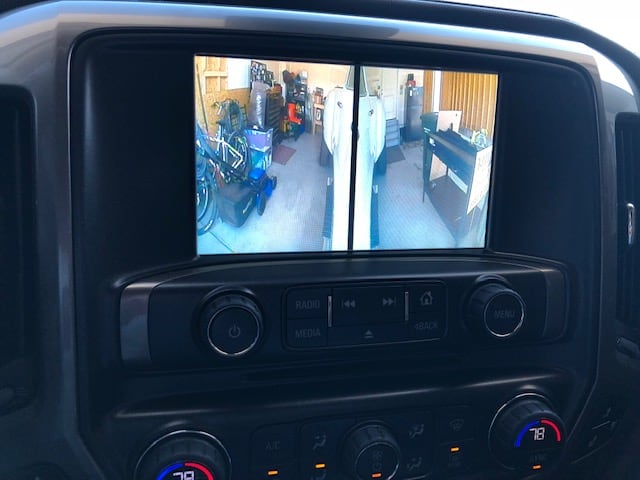

MVI 360 Camera System with HDMI/USB Video and GM Multi-Camera Tow System with Split-view Camera Operations and Interface Differences Video
