Chevy Silverado and GMC Sierra Cargo Bed Camera
MVI Inc is pleased to announce our newest member to the MVI GM Camera lineup. 2014 – 2018 Chevy Silverado and GMC Sierra Cargo / Bed Camera. This new GM Third Brake Light Camera will work perfectly as a Fifth Wheel or Cargo Camera for you guys hooking up a 5th wheel trailer; or for anyone that needs to monitor the cargo in the truck bed while driving (requires our Audio Video Input Module or 360 Surround and Blind Spot Camera Module for on demand camera viewing). This camera is a perfect fit, underneath the factory third brake light, giving it the perfect OEM look once installed. We offer two different GM Third Brake Light Camera Options, so please read through the info for both options to get the best option for your needs.

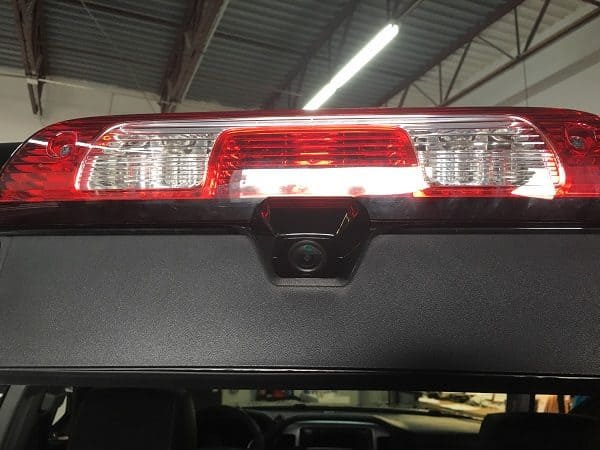

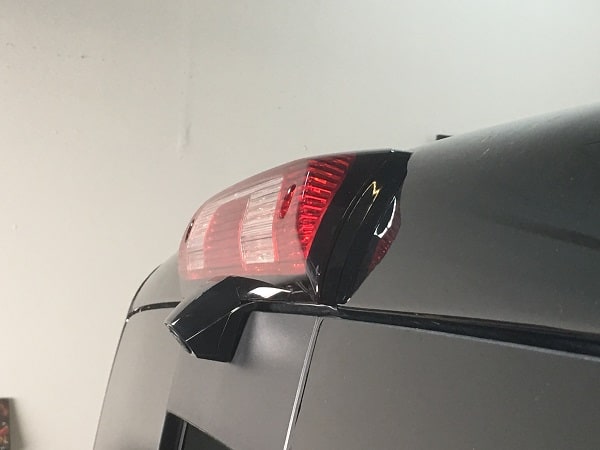

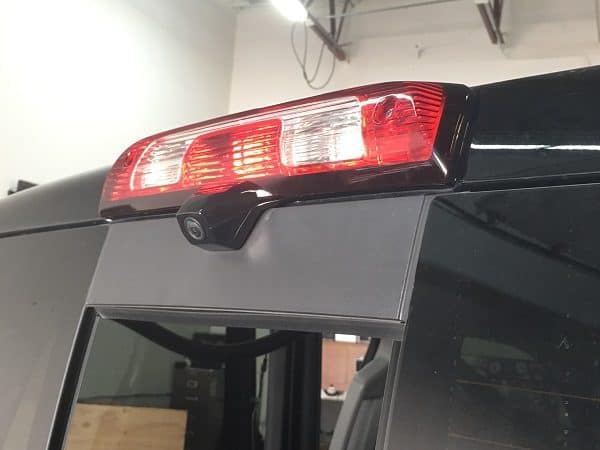

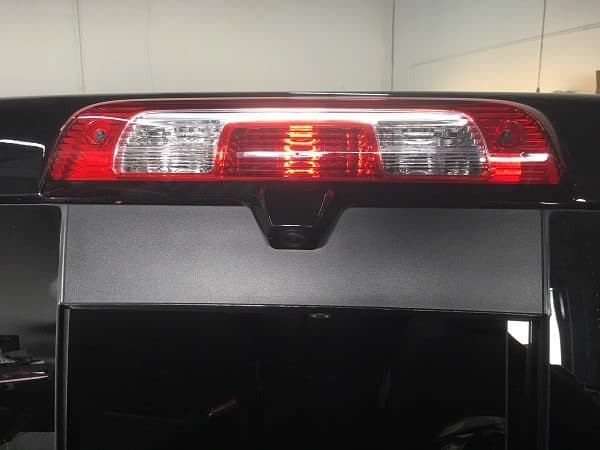

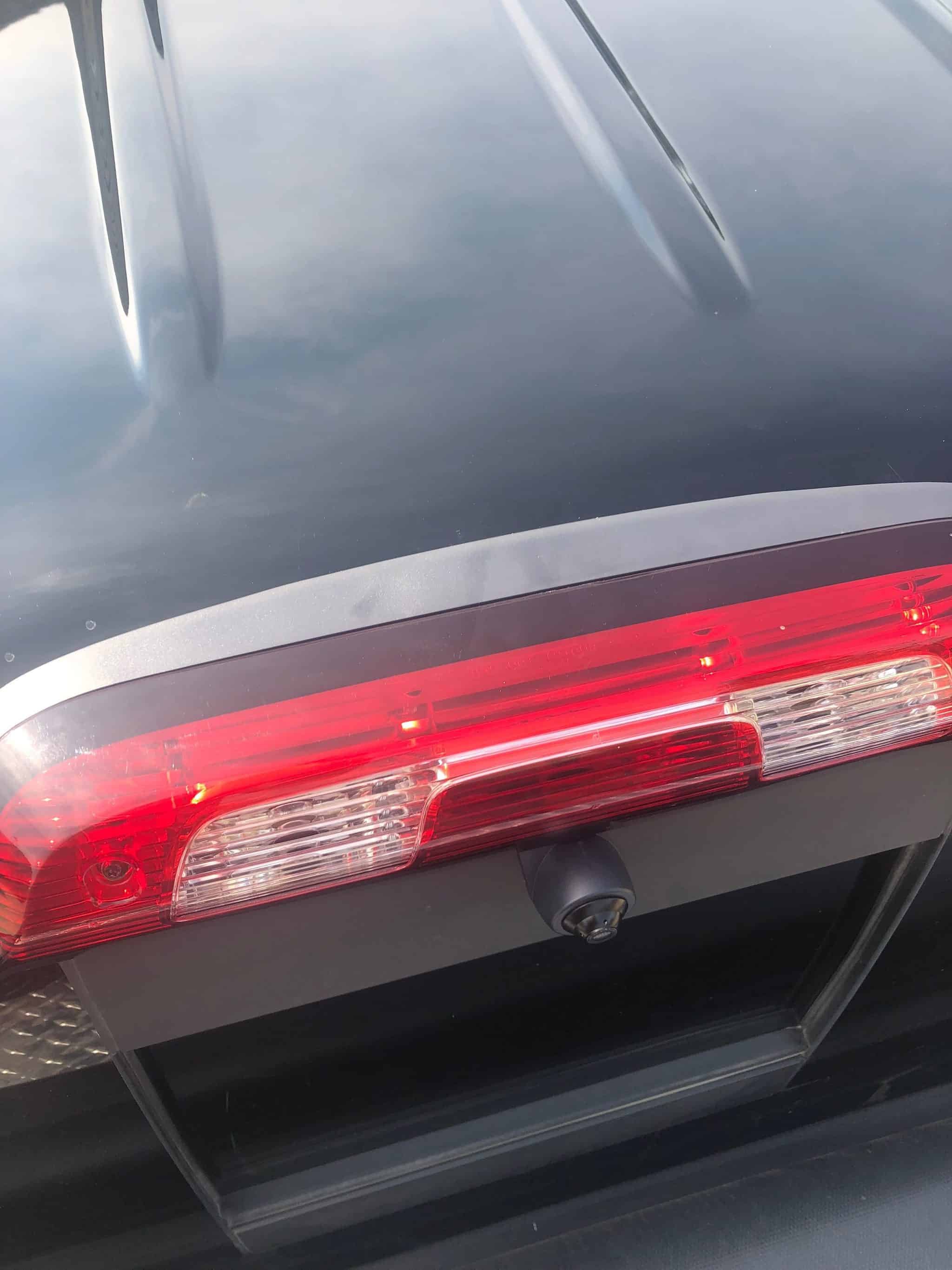

Molded Chevy Silverado and GMC Sierra Cargo / Bed Camera: The finish is a painted gloss black, which blends in perfectly with the vehicles that have the rear glass slider. This camera is molded and looks like it came as part of the truck, however the view of the bed only has one angle. If you have a folding tonneau cover, tool box, head rack or anything that sticks out from the back glass more than 12-18″ you will have a very limited view. Now there is no need to sacrifice the look of your new truck with a cheaper camera alternative. This OEM looking fit and finish GM third brake light camera is the finest quality on the market and priced very attractively.

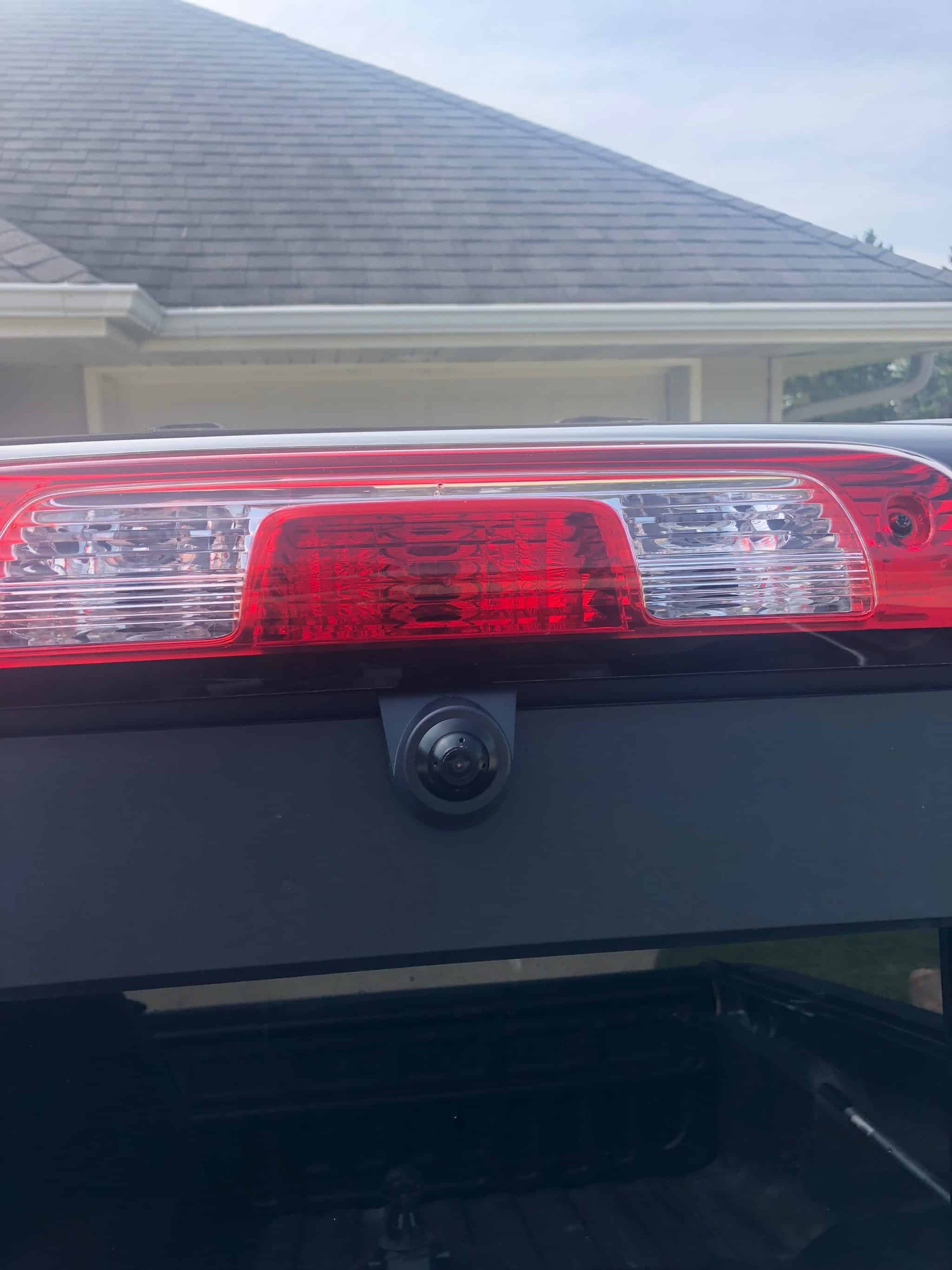

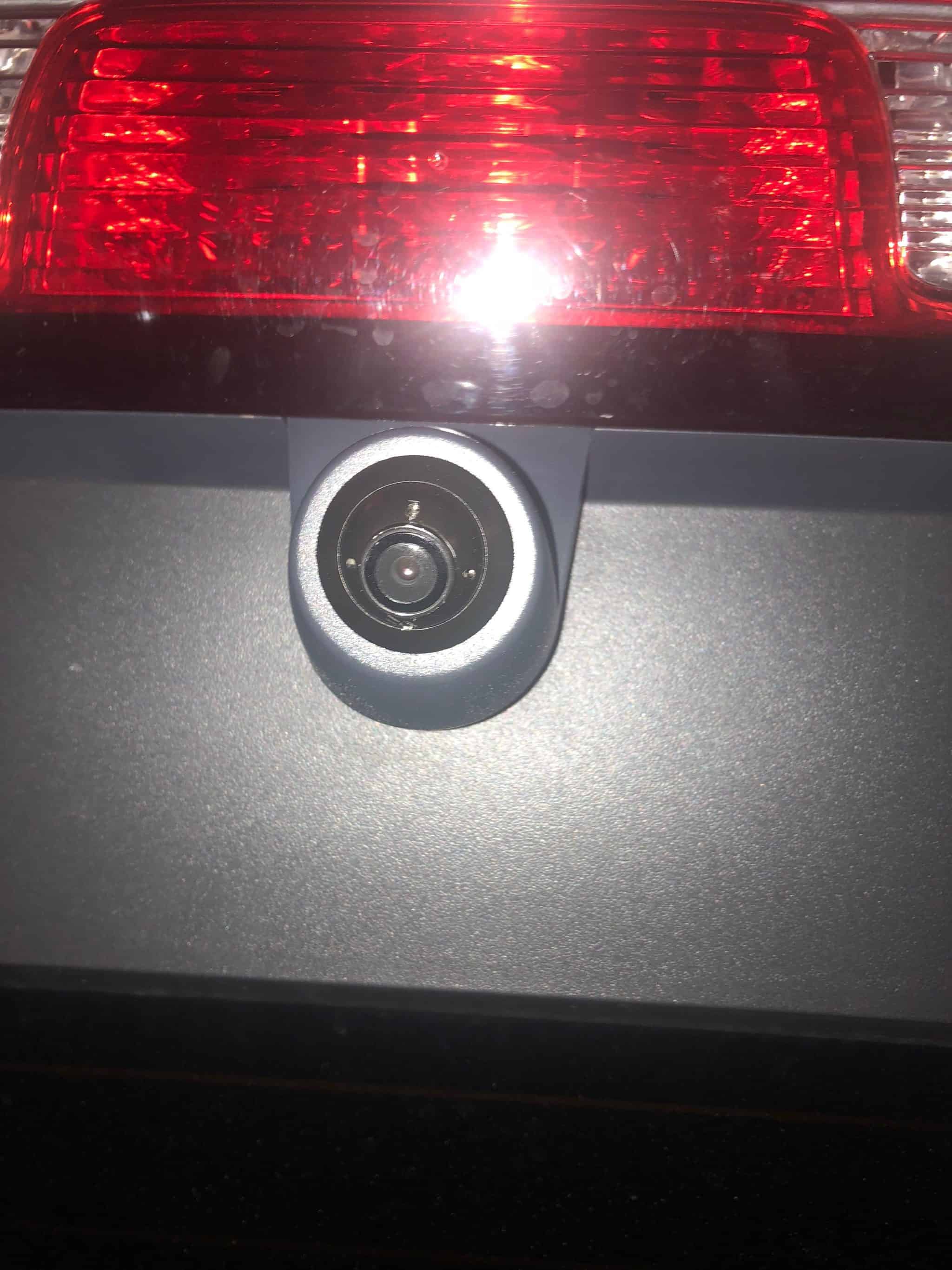

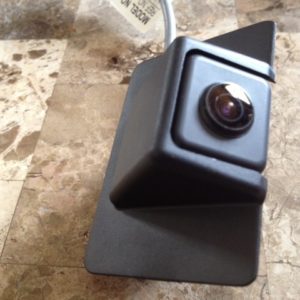

Adjustable Chevy Silverado and GMC Sierra Cargo / Bed Camera: The finish on this GM third brake light camera is more of a matte black. The benefit of the adjustable camera is exactly what the name implies. It will rotate side to side and up and down, inside the base; top give you the perfect angle of view in the bed. This is the perfect solution if you have that tonneau cover or tool box etc., that takes up 12-18″ of space directly behind the back glass. This will also allow you to see above your rear tailgate when in the up position, to see your cargo when pulling a hitch mounted trailer.
Reverse Only Operation: The kit ships standard with the camera assembly and harness long enough to route to the front of the truck cab. It has power and ground leads and a video output RCA that will plug into most aftermarket head units.

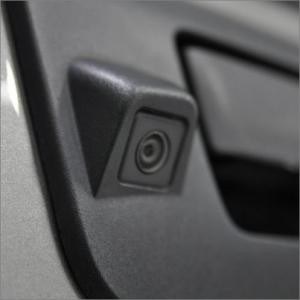

When you add our optional 2 way Video Switcher, our GM Third brake light cameras will now tie into your factory infotainment system. This switcher allows you to switch between your Factory GM Tailgate Handle Camera and the Chevy Silverado and GMC Sierra Cargo Bed Camera. If you plan on adding a Wireless RV Trailer Camera to the system, simply select the 3 way video switcher in the options above. It is important to understand that using the system with the switcher option only, allows you to switch between your tailgate camera and 3rd brake light/cargo cam while in reverse only.
In-Motion and Reverse Operation: If you need to pull up the added cargo bed camera while moving down the road, you will need to add a separate module to the display screen.
We have two options for allowing in-motion camera viewing: Our 360 Surround and Blind Spot Camera Module will allow you to add 3 additional cameras such as Front for Parking and Left / Right Turn Signal Cameras for blind spot elimination. Our Audio Video Input Module with optional Smartphone Screen Mirroring allows you to view the cargo in your truck bed as you drive down the road, as well as give you a second video input for functionality such as smart phone mirroring. Both of those items can be found on our site by simply clicking on the product wording above.
Installation: Install is fairly easy; simply remove the factory third brake light, snap the new bezel around the base of the light assembly, route the harness into the cab and screw back into place. The harness will need to routed to the front of the truck and connections will be made both behind the glove box and under the dash. If you plan on doing this install on your own, please make sure you watch the install video to be certain its within your abilities. Click Here for Install Video
- Important Note: Not Compatible on 2017+ models with the Factory Overhead Rear Seat Entertainment (RSE) System.
- Professional installation is recommended if you are not familiar with automotive electronics and installations. We do provide up to 15 minutes of BASIC installation support for customers that prefer to do the install on their own, for trouble shooting purposes ONLY. As a custom business we are NOT able offer on-demand tech support. Tech support must be scheduled via TEXT MESSAGE only. For more info please view our Terms and Conditions.
2014 – 2018 Chevrolet Silverado
2014 – 2018 GMC Sierra
